Model AJ801E

Form No. SJ-AJ801E-880E-M

OPERATOR’S MANUAL

SAVE THESE INSTRUCTIONS

12.6-INCH 12-AMP ELECTRIC

SCARIFIER + DETHATCHER

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Always follow these safety guidelines. Failure to do so may

result in serious bodily injury or death.

General Safety WARNINGS!

When using this electric scarier + dethatcher, basic safety

precautions should always be followed to reduce the risk of

re, electric shock and personal injury.

Before using the scarier + dethatcher, take the time to

familiarize yourself with the controls, especially how to stop

the machine in an emergency. The only individuals who should

use the scarier + dethatcher are those who have a thorough

understanding of the instructions and who know how to

operate the machine. Children should never be allowed access

to the scarier + dethatcher.

Retain this manual for future reference and reread it at the start

of each dethatching session.

General Safety

1. Keep work area clean and well-lit – Cluttered, dark

areas invite accidents.

2. Replacement parts – When servicing this unit, use only

identical replacement parts. Replace or repair damaged

cords immediately.

3. Keep children, bystanders, and pets away – All

spectators, including pets, should be kept a safe distance

away from the work area.

4. Dress properly – Do not wear loose clothing or jewelry

as such articles can get caught in moving parts. Wear a

protective covering to contain long hair. Wearing rubber

gloves and substantial non-slip footwear is recommended

when working outdoors.

5. Avoid accidental starting – Do not carry the scarier +

dethatcher with your nger on the switch. Make sure the

switch is o before plugging in the unit.

6. Do not force the tool – It will perform better with less

likelihood of personal or mechanical injury if it is used at

the rate for which it is designed.

7. Wear personal protective equipment – When using this

tool, wear safety glasses with side shields or goggles to

provide necessary eye protection. Wear ear defenders to

prevent hearing damage. Use a face or dust mask if the

work environment is dusty.

8. Disconnect the tool – Disconnect the scarier +

dethatcher from the power supply when it is not in use,

before servicing it, when changing accessories, and when

performing any other maintenance task.

9. Store idle tool indoors – When not in use, the scarier +

dethatcher should be stored indoors in a dry and high or

locked-up place out of the reach of children.

10. Maintain the scarier + dethatcher with care – Keep

cutting edges sharp and clean for optimal and safest

performance.

Inspect the scarier + dethatcher cord periodically and

if damage is found have it repaired by an authorized

service facility. Extension cords should also be inspected

periodically and immediately replaced if damaged. Keep

handles dry, clean and free from oil and grease.

11. Use the right tool – Do not use the tool for any job except

that for which it is intended.

12. Avoid dangerous environments – Do not use the

scarier + dethatcher in rain, damp, or wet locations.

13. Stay alert – Watch what you are doing. Use common

sense. Do not operate the scarier + dethatcher when you

are tired or under the inuence of drugs, alcohol, or other

medication.

14. Do not overreach – Keep proper footing and balance at

all times.

mWARNING! Some dust and debris created by the

use of the tool could contain chemicals known to the State

of California to cause cancer and birth defects or other

reproductive harm. Some examples of these chemicals are:

• chemicals in fertilizers

• compounds in insecticides, herbicides, and pesticides

• arsenic and chromium from chemically treated lumber

Your risk from exposure to these chemicals varies, and

depends on how often you do this type of work. To reduce

your exposure, work in a well-ventilated area and with

approved safety equipment, such as dust masks that are

specially designed to lter out microscopic particles.

Double-Insulated Appliances

In a double-insulated appliance, two systems of insulation

are provided instead of grounding. No grounding means

that it is already provided on a double-insulated appliance.

Servicing a double-insulated appliance requires extreme care

and knowledge of the system, and should be performed only

by qualied service personnel at an authorized Snow Joe

Sun Joe

dealer. Replacement parts for a double-insulated

appliance must be identical to the parts they replace. A

double-insulated appliance is marked with the words “Double

Insulation” or “Double Insulated.” The symbol (square

within a square) may also be marked on the appliance.

DOUBLE-INSULATED: GROUNDING NOT

REQUIRED. WHEN SERVICING, USE ONLY

IDENTICAL REPLACEMENT PARTS.

This electric scarier + dethatcher is double-insulated,

eliminating the need for a separate grounding system. Use

only identical replacement parts. Read the instructions before

servicing double-insulated appliances. Use this electric

scarier + dethatcher only as described in this manual.

Electrical Safety

1. Ground fault circuit interrupter (GFCI) protection should

be provided on the circuit(s) or outlet(s) to be used for

this electric scarier + dethatcher. Receptacles are

available having built-in GFCI protection and may be used

for this measure of safety.

2. To prevent electric shock, use only with an extension cord

suitable for outdoor use, such as SW-A, SOW-A, STW-A,

STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A.

Before use, check that the extension cord is in good

condition. When using an extension cord, make sure to

use one heavy enough to carry the current your product

will draw. For lengths more than 50 ft (15 m), a No.14

AWG (or greater) extension cord should be used. An

undersized cord will cause a drop in line voltage resulting

in loss of power and overheating.

3. To reduce the risk of electric shock, this appliance has

a polarized plug (i.e. one blade is wider than the other).

Use this appliance only with a polarized UL-, CSA-, or

ETL-listed extension cord recommended for outdoor,

all-weather use, such as the Snow Joe

+ Sun Joe

Power Joe SJTW-A 14-gauge 50-foot extension cord

with lighted end (Model PJEXT50-B). Visit snowjoe.com

to purchase this extension cord online or, to order by

phone, call 1-866-SNOWJOE (1-866-766-9563).

The appliance plug will t into a polarized extension cord

only one way. If the appliance plug does not t fully into the

extension cord, reverse the plug. If the plug still does not

t, obtain a correct polarized extension cord. A polarized

extension cord will require the use of a polarized wall outlet.

The extension cord plug will t into the polarized wall outlet

only one way. If the plug does not t fully into the wall

outlet, reverse the plug. If the plug still does not t, contact

a qualied electrician to install the proper wall outlet. Do not

modify the appliance plug, extension cord receptacle, or

extension cord plug in any way.

Extension Cord

Length

Wire Gauge (A.W.G.):

Up to 50 ft

(15 m)

+50 ft – 100 ft

(+15 m – 30 m)

14 12

m WARNING m

Electric shock may cause SEVERE INJURY or

DEATH. Heed these warnings:

• Do not allow any part of the electric scarier +

dethatcher to make contact with water while it is in

operation. If the appliance becomes wet while turned

o, wipe dry before starting.

• Use only a UL-, CSA-, or ETL-rated extension cord

for outdoor, all-weather use, such as the Snow Joe

Sun Joe

Power Joe SJTW-A 14-gauge 50-foot

extension cord with lighted end (Model PJEXT50-B).

Visit snowjoe.com to purchase this extension cord

online or, to order by phone, call 1-866-SNOWJOE

(1-866-766-9563).

• Do not use an extension cord over 100 ft (30 m).

• Do not touch the appliance or its plug with wet hands

or while standing in water. Wearing rubber boots

oers some protection.

EXTENSION CORD CHART

4. To prevent the appliance cord from disconnecting from

the extension cord during operation, use the onboard

extension cord restraint hook and/or make a knot with the

two cords as shown in Table 1.

5. Do not abuse the cord. Never pull the scarier +

dethatcher by the cord or yank the cord to disconnect it

from the receptacle. Keep the cord away from heat, oil,

and sharp edges.

IMPORTANT!

Safety Instructions for Walk-Behind

Scarier + Dethatchers

General Operation

• Read, understand and follow all instructions on the

machine and in the manual(s) before starting.

• Thoroughly inspect the area where the equipment is to be

used and remove all foreign objects.

mWARNING! Foreign objects in the work area can be

picked up by the scarier + dethatcher and launched into your

eyes, which can result in severe personal injury. In addition

to surveying the area and removing foreign objects before

beginning work, always wear safety goggles or safety glasses

with side shields and, when necessary, a full face shield.

• Use the electric scarier + dethatcher only in daylight or

good articial light.

• Do not operate the equipment without wearing adequate

outer garments. Wear protective footwear that will improve

footing on slippery surfaces.

• Use extension cords and receptacles as specied by the

manufacturer for all units with electric drive motors or

electric starting motors (see extension cord chart on

page 2).

• Never attempt to make any adjustments while the motor is

running.

• Never operate the scarier + dethatcher in wet grass.

Always be sure of your footing; walk, never run, with the

machine.

• Do not put hands or feet near or under rotating parts.

• Exercise extreme caution when operating on or crossing

gravel drives, walks or roads. Stay alert for hidden hazards

or trac.

• Exercise caution to avoid slipping or falling.

• Stop the motor and disconnect the power supply when

leaving the operating position, before unclogging the tines

and when repairing, adjusting, inspecting or performing

any other maintenance on the machine.

• Take all necessary precautions when leaving the machine

unattended. Stop the motor and remove the power cord.

• Before cleaning, repairing or inspecting the unit, shut o

the motor, disconnect the power supply and wait until all

moving parts have come to a complete stop.

• Never operate the machine without proper guards, plates

or other safety protective devices in place and in proper

working order.

• Keep children and pets away.

• Do not overload the machine capacity by attempting to

dethatch too deep at too fast a rate.

• Never operate the machine at high transport speeds on

hard or slippery surfaces.

• Never allow bystanders near the unit when operating.

• Use only attachments and accessories approved by the

manufacturer of the machine.

• Never operate the machine without good visibility or light.

• Be careful when cultivating in hard ground. The tines may

catch in the ground and propel the machine forward. If

this occurs, let go of the handlebars and the starting lever

and do not restrain the machine.

• Use extreme caution when reversing or pulling the

machine towards you.

• Stop the tines if the machine has to be tilted for

transportation. Do not operate the tines when crossing

surfaces other than grass, and when transporting the

product to and from the working area.

• Do not tilt the machine when switching on the motor,

except if the product has to be tilted for starting. In this

case, do not tilt it more than absolutely necessary and lift

only the part which is away from the operator.

• Do not start the motor when standing in front of the

discharge opening.

• Switch on the motor carefully according to the instructions

and keep your feet clear of the rotating tines.

• Never pick up or carry the machine while the motor is

running.

(B) Connect plug and receptacle

Cord set Appliance cord

(A) Tie cord as shown

Table 1. Method of Securing Extension Cord

• Stop the motor and disconnect the machine from the

power supply:

– before clearing blockages or unclogging the discharge

opening;

– before checking, cleaning or working on the machine;

– after striking a foreign object. Inspect the machine for

damage and make repairs before restarting and

operating the machine;

– if the machine starts to vibrate abnormally (check

immediately).

– whenever you leave the machine.

• Never use the scarier + dethatcher without the thatch

collection bag securely tted.

• WARNING! Beware of sharp tines. Tines continue to

rotate after the motor is switched o.

Slope Operation

Slopes are major factors related to slip and fall accidents,

which can result in severe injury. Operation on all slopes

requires extra caution. If you feel uneasy on a slope, do not

dethatch it.

• Dethatch across the face of slopes; never dethatch slopes

following an up and down traverse. Exercise extreme

caution when changing direction on a slope.

• Watch for holes, ruts, bumps, rocks or other hidden

objects. These may cause an unexpected slip or fall.

• Do not dethatch on wet grass or excessively steep slopes.

Poor footing could cause a slip and fall accident.

• Do not dethatch near drop os, ditches or embankments.

You could lose your footing or balance.

Children Safety

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the dethatching activity. Never assume that

children will remain where you last saw them.

• Keep children out of the dethatching area and under

the watchful care of a responsible adult other than the

operator.

• Stay alert and turn the dethatcher o if a child enters the

area.

• Never let children operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees or other objects that may block your view of a child.

Vibration + Noise Reduction

To reduce the impact of noise and vibration emission, limit the

time of operation, use low-vibration and low-noise operating

modes as well as wear personal protective equipment. Take

the following points into account to minimize the vibration and

noise exposure risks:

• Only use the product as intended by its design and these

instructions.

• Ensure that the product is in good condition and well

maintained.

• Use correct application tools for the product and ensure

they are in good condition.

• Keep tight grip on the handles/grip surface.

• Maintain this product in accordance with these

instructions and keep it well lubricated (where

appropriate).

• Plan your work schedule to spread any high vibration tool

use across a number of days.

Residual Risks

Even if you are operating this product in accordance with all

the safety requirements, potential risks of injury and damage

remain. The following dangers can arise in connection with the

structure and design of this product:

• Health defects resulting from vibration emission if the

product is being used over long periods of time or not

adequately managed and properly maintained.

• Injuries and damage to property due to broken application

tools or the sudden impact of hidden objects during use.

• Danger of injury and property damage caused by ying

objects.

mWARNING! This product produces an electromagnetic

eld during operation! This eld may under some

circumstances interfere with active or passive medical

implants! To reduce the risk of serious or fatal injury, we

recommend persons with medical implants to consult their

doctor and the medical implant manufacturer before operating

this product!

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all

instructions on the machine before attempting to assemble and operate.

Thrown objects picked up by the

rotating tines can cause severe

injury.

Use extreme CAUTION when

reversing or pulling the machine

towards you.

SAFETY ALERT – Indicates a

precaution, a warning, or a danger.

READ THE OPERATOR’S

MANUAL(S) – Read, understand,

and follow all instructions in the

user manual(s) before attempting to

assemble and operate.

WARNING! Do not expose the unit

to rain or wet conditions.

WEAR EYE AND HEARING

PROTECTION – For protection

against injury, wear ear defenders

and safety goggles.

DANGER! Rotating blades – Keep

hands and feet away from moving

parts.

Wear protective gloves and

non-slip footwear when using

the machine and handling debris.

SWITCH OFF! Remove plug from

outlet before cleaning or conducting

maintenance checks.

Inspect the work area prior to use

and remove all objects that could be

thrown by the appliance. If a hidden

object is discovered while working,

stop the engine and remove the

object.

Keep bystanders a safe

distance away from the work

area.

SWITCH OFF! Remove plug from

outlet immediately if the cord is

damaged or cut.

Do not push down stairs.

Double Insulation.

Symbols SymbolsDescriptions Descriptions

Know Your Electric Scarier + Dethatcher

Read the owner’s manual and safety instructions carefully before operating the scarier + dethatcher. Compare the illustration

below to the dethatcher in order to familiarize yourself with the location of the various controls and adjustments. Save this manual

for future reference and reread it prior to each dethatching session.

1. ON/OFF switch lever

2. Safety lock button

3. Extension cord restraint holder

4. Upper handle

5. Upper handle knob and bolt (2)

6. Appliance cord

7. Middle handle bar (2)

8. Cable clip (2)

9. Lower handle knob and bolt (2)

10. Thatch bag cover

11. Lower handle bar (2)

12. Thatch collection bag

13. Rear wheel (2)

14. Front wheel (2)

15. Raking depth adjustment lever

16. Air vent

Technical Data

Rated Voltage 120 V ~ 60 Hz

Motor 12 A

No Load Speed 2,990 rpm

Raking Width 12.6 in. (32 cm)

Raking Depth* -0.4 in. to 0.4 in. (-10 mm to 10 mm)

Depth Adjustment 5-position

Thatch Bag Capacity 8 gal (30 l)

Dethatcher Cylinder 24 spring steel raking tines

(0.5 mm thick)

Scarier Cylinder 20 slicing blades

Wheel Size 8 in. (20 cm) front

4 in. (10 cm) rear

Weight 23 lbs (10.3 kg)

*Note: The negative raking depth indicates that the tines are raking below the horizon (i.e. penetrating the soil layer).

15 16

Unpacking

Carton Contents

• Scarier + dethatcher housing

• Handle knob and bolt (4)

• Upper handle

• Middle handle bar (2)

• Lower handle bar (2)

• Phillips screw (2)

• Bolts + spring washer (2)

• Thatch collection bag

• Extension cord restraint holder

• Cable clip (2)

• Scarifying cylinder (Pre-assembled)

• Raking cylinder

• Manual and registration card

1. Carefully remove the electric scarier + dethatcher and

check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or

missing parts, DO NOT return the unit to the store. Please

call the Snow Joe

+ Sun Joe

customer service center at

1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging

material until you are ready to use the electric scarier

+ dethatcher. The packaging is made of recyclable

materials. Properly dispose of these materials in

accordance with local regulations or save the packaging

for long-term product storage.

IMPORTANT! The equipment and packaging material are

not toys. Do not let children play with plastic bags, foils,

or small parts. These items can be swallowed and pose a

suocation risk!

Intended Use

1. This scarier + dethatcher is designated with a rated input

of 1560 watts. Depending on the tted cutting device, this

machine is either intended for scarifying and removing

thatch from lawns or raking in domestic and hobby

gardens.

2. When used as a scarier, this machine works by

scratching through and between the grass with specially

adapted prongs that collect and remove any unwanted

parts from the lawn while leaving the grass blades intact.

At the same time the machine scaries the ground

resulting in a better aeration.

3. When used as a dethatcher the ne needles will scratch the

surface of the lawn while simultaneously picking up light

debris for better oxygen absorption, airing and drainage.

4. This machine is not to be used in wet weather conditions

and may not be used to mow dry, wet or unusually high

grass, e.g., pasture grass or for shredding leaves.

5. This machine is intended for private domestic use only,

not for any commercial trade use. It must not be used for

any purposes other than those described.

Assembly

mWARNING! Do not connect the scarier + dethatcher to

the power supply until assembly is complete. Failure to comply

could result in accidental starting and severe personal injury.

Always wear gloves during assembly.

Connecting the Handle Bars

1. Insert the lower handle into the motor housing and secure

it with the two Phillips screws (Figs. 1 & 2).

Fig. 1

Lower

handle

bars

Motor

housing

Fig. 2

Phillips

screw

2. Secure the two middle handle bars to the lower handle

bars using the rst set of knobs and bolts. Tighten the

knobs on each side to ensure a secure t (Fig. 3).

3. Hang the extension cord restraint holder on the upper

handle (Fig. 4).

4. Connect the upper handle to the middle handle bars using

the second set of knobs and bolts. Tighten the knobs on

each side to ensure a secure t (Figs. 4 & 5).

5. Fix the cord with cord clips to the middle and lower right

handle bars (Fig. 6).

Thatch Collection Bag Assembly

mWARNING! Do not attempt to use the product without

the thatch collection bag attached. This could pose a danger

of ying debris.

mWARNING! The product must be switched o and the

cutting device must have stopped rotating before you attach or

empty the thatch collection bag.

mWARNING! Never use the scarier without the thatch

collection bag securely tted.

NOTE: A full thatch collection bag will reduce the perfomance

of this product.

Attach the thatch collection bag to the lawn scarier +

dethatcher before operation.

1. Lift the thatch collection bag cover, and hang the thatch

collection bag to the mounting hooks (Fig. 7).

Fig. 3

Lower handle

knob + bolt

Middle handle bars

Lower handle bars

Fig. 4

Extension

cord

restraint

holder

Upper handle

Middle handle bar

Fig. 5

Upper handle

knob + bolt

Fig. 6

Cord clips

Mounting hooks

Fig. 7

Thatch collection

bag cover

Thatch collection bag

Removing + Emptying the Thatch

Collection Bag

Empty the thatch collection bag frequently during use. Do not

wait until it is completely full. We recommend emptying it when

it is half full.

1. Lift the thatch collection bag cover and pull the thatch

collection bag o the mounting hooks to remove it.

2. Empty the bag’s contents into a suitable waste receptacle.

Mount the bag back into position before resuming work.

Operation

Cutting Depth Adjustment

mWARNING! The unit must be switched o and

disconnected from the power supply before adjusting the

tine settings.

Adjust the depth according to the needs of your lawn. The

most suitable depth depends on the kind of lawn and the

actual height of the grass.

1. Push the depth adjustment lever towards the wheel, then

move it forward or backward to adjust the cutting depth

(Fig. 8).

2. Adjust the lever to one out of ve stages. Read the

adjusted depth from the scale (Fig. 9).

Power Connection

Push a loop of the extension cord through the slot on the

extension cord restraint holder from the opposite side of the

restraint holder (Fig. 10). Insert the appliance cord into a proper

outdoor extension cord (see Extension Cord Chart on page 2).

Fig. 8

Depth

adjustment

lever

Wheel

Fig. 9

Fig. 10

Extension

cord restraint

holder

Extension

cord

Scale/

Position

high 10 mm

do not use for scarifying

for pushing behind with the machine; and

removing thin thatch layers

transport, storage and scarifying

use for scarifying

transport, storage and raking

raking healthy lawn

not recommended for raking

do not use for raking

minimal

middle

deep

5 mm

0 mm

-5 mm

-10 mm

Setting

Depth Scarifying Raking

Application

Starting + Stopping

mWARNING! Before switching on the lawn scarier +

dethatcher, make sure that it is not in contact with any foreign

objects. Keep your feet and hands a safe distance away from

the rotating tines and the ejector opening. Failure to comply

with these warnings can result in severe personal injury.

1. To start, press and hold the safety lock button while

pulling the switch lever toward you. Once the machine

powers on, release the safety lock button and proceed

with operation (Fig. 11).

2. To stop the lawn scarier + dethatcher, release the switch

lever.

mWARNING! The tine cylinder continues to run for a

brief period after the unit has been switched o. Do not tilt or

carry the unit while the motor is still running and do not touch

the cylinder while it is still rotating. Failure to comply could

result in severe personal injury.

Overload Protection

The overload protection will be activated in the following

circumstances:

1. A build up of scaried material around the cutting device.

2. If the material scaried is larger than the motor capacity.

3. Where there is too much resistance against the cutting

device.

When the circuit breaker has been activated switch o the

product and disconnect from the power supply.

Let the product cool down and eliminate the cause before

using the product again.

General Operation

mWARNING! If the product strikes a foreign object stop

the motor. Switch the product o, disconnect it from the power

supply and let it cool down. Inspect the product thoroughly for

damage. Have any damage repaired before restarting.

mWARNING! Extensive vibration of the product during

operation is an indication of damage. The product should be

promptly inspected and repaired.

• Check the machine, its power cord and plug as well as

accessories for damage before each use. Do not use the

machine if it is damaged or shows wear.

• Double check that accessories are properly xed.

• Push the machine forward by its handle. Keep the handle

dry to ensure safe support.

• Ensure that the air vents are always unobstructed and

clear. Clean them if necessary with a soft brush. Blocked

air vents may lead to overheating and damage the

product.

• Switch the machine o immediately if you are disturbed

while working by other people entering the working area.

Always let the machine come to complete stop before

putting it down.

• Do not overwork yourself. Take regular breaks to ensure

you can concentrate on the work and have full control

over the machine.

• Mow the lawn before working and fertilize afterwards.

• Make sure that the lawn is clear of stones, sticks, wire, or

other objects that could damage the machine or its motor.

• Select the suitable cutting depth for the actual grass

height.

• Do not work with this machine on a wet lawn because it

tends to stick to the underbody of the machine, preventing

the proper discharge of collected material, and it could

also cause you to slip and fall.

• Slowly push the machine forward. Move the machine at

appropriate speed. Do not move it too fast to prevent the

discharge from getting blocked and engine from useless

overloading.

• Work in slight overlapping rows. The most eective pattern

for scarifying/raking lawns is straight lines along one of the

sides. This will keep the rows even and ensures that all the

lawn is scared/raked without missing any spots (Fig. 12).

Fig. 11

Switch lever

Safety lock button

Fig. 12

• Circle around ower beds. When reaching a ower bed

in the middle of the lawn, make a row or two around the

circumference of the bed.

• Pay special attention when changing direction.

Scarifying

Consider the weather when scarifying. Scarify the lawn with an

increased depth setting during spring time between April and

May as the lawn is better able to recover during this season.

During a wet summer scarify again in late summer with a

decreased depth setting. Do not scarify during periods of hot

weather condition. During a dry rainless summer do not scarify

a second time in autumn.

Raking

In order for a healthy lawn to develop in the spring, it is

necessary for greater amounts of air to penetrate the area

around the roots of the grass. We recommend aerating the

lawn every 4 – 6 weeks depending on the state of your lawn.

Maintenance

mWARNING! Before carrying out any repairs or

servicing work, you must ensure that the machine has been

disconnected from the power supply. Repairs and maintenance

work other than described within this instruction manual may

be performed only by qualied specialist!

Service + Storage

To ensure long and reliable service, carry out the following

maintenance regularly. Servicing and cleaning work on the

machine and the removal of the guards may only be carried

out after the motor has been switched o and the plug

disconnected from the power supply.

• Keep all nuts, bolts and screws tight to be sure the

product is in a safe working condition.

• Allow the product to cool before storing in any enclosure.

• Check the thatch collection bag frequently for wear or

deteriotation.

• Examine the product regularly and replace worn or

damaged parts for safety.

• Check that covers and guards are undamaged and

correctly tted. Carry out necessary maintenance or

repairs before using the machine.

• If the cutting device should happen to fail despite the

care taken in manufacturing and testing, repair should be

carried out by an authorized repair facility.

• Do not clean the machine while it is running.

• Ensure that all the fastening elements (screws, nuts, etc.)

are tight at all times so that you can safely work with the

machine.

• Check the machine frequently for signs of wear. Replace

worn or damaged parts.

• Store your machine in a dry place. To ensure a long

service life all screws and bolts should be cleaned and

then oiled.

• Clean the machine with a brush or cloth. Do not use any

solvents or water to remove dirt.

• The component that is subject to most wear is the cutting

device. You should therefore check the condition of the

cutting device and its mounting at regular intervals.

– If the cutting device is worn or blunt it must be replaced

immediately.

– If the machine starts to suer from excessive vibrations,

this means that the cutting device has not been

balanced correctly or has suered deformation due to

impacts. In this case it must be repaired or replaced.

Replacing/Changing Cutting Device

mWARNING! Always switch the machine o, disconnect

it from power supply and let it cool down before changing/

replacing the cutting device.

mWARNING! Cutting devices are very sharp and become

hot during use. Handle them carefully.

mWARNING! Wear safety gloves when handling cutting

devices in order to avoid injuries like burns and cuts.

mWARNING! Make sure all bolts are completely tightened

before operating the machine. Don’t operate the machine if

any bolts are missing, loose, or damaged.

The product has two functions, scarifying or raking. The

scarifying cylinder is preassembled on the machine. The raking

cylinder is included in the supply box. The cylinder can be

changed according to the application (Fig. 13).

Fig. 13

Scarifying cylinder with blades

Raking cylinder with spring metal tines

mWARNING! Before performing any maintenance, always

disconnect the power supply to the unit and wait until the tine

cylinder comes to a complete stop. Wear protective gloves

when handling the tines.

1. Remove the thatch collection bag.

2. Place the machine upside down on a at stable surface to

access the underbody.

3. Loosen the two bolts with a suitable wrench, remove them

together with the spring washers and the attached cutting

device (Fig. 14).

4. To remove the cutting device, rst lift the bearing and then

pull it out from the drive shaft.

5. Align and insert the respective cutting device: Slide the

hex nut into the socket of the drive shaft and x the

bearing to the support with the bolts and spring washers

(Fig. 15).

NOTE: If you have any questions, please call the Snow Joe

+ Sun Joe

customer service center at 1-866-766-9563

(1-866-SNOWJOE) for assistance.

After Use

1. Switch the machine o, disconnect it from the power

supply and let it cool down.

2. Check, clean and store the machine as described below.

Thatch Collection Bag

1. Inspect the thatch collection bag before each use. Do not

use it if you nd any damage.

2. Clean the thatch collection bag after operation. Let the

thatch collection bag dry thoroughly before storing to

avoid mildew.

Transportation

1. Switch the product o and disconnect it from power

supply before transporting it anywhere.

2. Attach transportation guards, if applicable.

3. Adjust the cutting depth to the transportation stage (refer

to “CUTTING DEPTH ADJUSTMENT” on page 9).

4. Always transport the product by its handle.

5. Protect the product from any heavy impact or strong

vibrations which may occur during transportation in

vehicles.

6. Secure the product to prevent it from slipping or falling over.

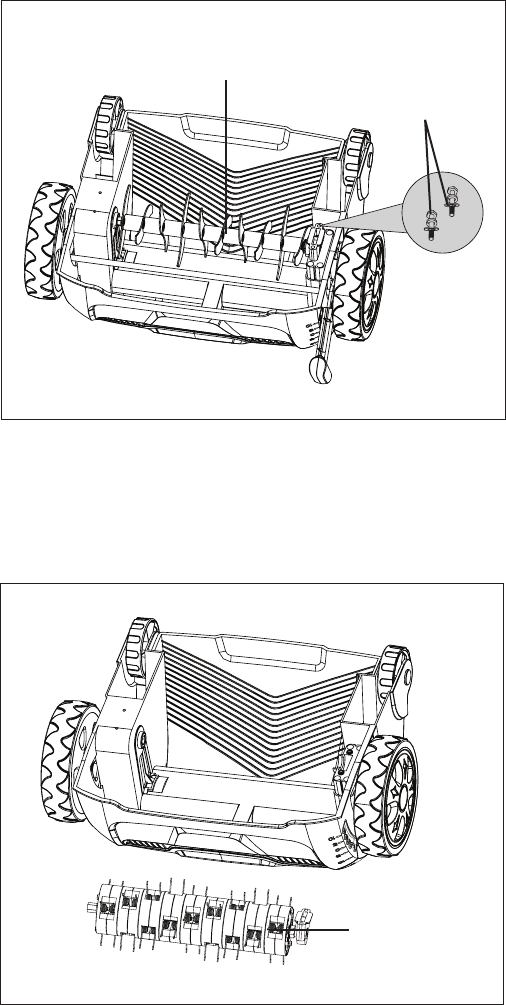

Fig. 14

2 bolts +

spring washers

Cutting device

(scarifying cylinder)

Fig. 15

Cutting device

(raking cylinder)

Troubleshooting

mWARNING! Only perform the steps described within these instructions!

All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualied

specialist if you cannot solve the problem yourself!

Suspected malfunctions, disturbances or damages are often due to causes that the user can x themselves. Follow the below

troubleshooting guidelines when checking the unit. In most cases, the problem can be resolved quickly and the dethatcher can

be restored to proper working order.

Service and Support

If your AJ801E electric scarier + dethatcher requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563)

for assistance.

Model and Serial Numbers

When contacting the company, reordering parts or arranging service from an authorized dealer, you will need to provide the

model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the

space provided below.

Motor does not start

Product does not reach

full power

Unsatisfying result

a) Not connected to power supply

b) Power cord or plug is defective

c) Other electrical defect to the product

d) Lock-o button not pressed

a) Connect to power supply

b) Contact an authorized service agent

c) Contact an authorized service agent

d) Press lock-o button rst, then the

start/stop lever

a) Extension cord not suitable for

operation with this product

b) Power source (e.g. generator) has

too low voltage

c) Air vents are blocked

a) Use a proper extension cord

b) Connect to another power source

c) Clean the air vents

a) Cutting device worn

b) Scaried material exceeds capacity

c) Scarifying depth is incorrect

a) Replace the tine cylinder (see page 11)

b) Only scarify materials according to

capacity of the product

c) Adjust depth

Problem Possible Cause Solution

Record the following numbers from the housing or handle of your

new product:

A J 8 0 1 E

Model #:

Serial #:

Optional Accessories

mWARNING! ALWAYS use only authorized Snow Joe

+ Sun Joe

replacement parts and accessories. NEVER use

replacement parts or accessories that are not intended for use with this electric scarier + dethatcher. Contact Snow Joe

Sun Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your electric scarier +

dethatcher. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

+ Sun Joe

to provide notice of such

changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe

+ Sun Joe

customer

service center at 1-866-SNOWJOE (1-866-766-9563).

Raking cylinder with ne needles

Snow Joe

+ Sun Joe

Power Joe SJTW-A

14-gauge 50-foot extension cord with

lighted end

PJEXT50-B

AJ801E-67

AJ801E-68

ModelAccessories Item

Scarifying cylinder with blades

SNOW JOE

+ SUN JOE

CUSTOMER PROMISE

GENERAL CONDITIONS:

Snow Joe

+ Sun Joe

operating under Snow Joe

, LLC warrants

this new product to the original purchaser for two years against

defects in material or workmanship when used for normal

residential purposes. If a replacement part or product is needed,

it will be sent free of charge to the original purchaser except as

noted below.

The duration of this warranty applies only if the product is put

to personal use around the household. If the product is put to

any business, commercial or industrial use or is rented or leased,

then the duration of this warranty is 90 days from the date of

original purchase. It is the owner’s responsibility to correctly

perform all maintenance and minor adjustments explained in

the owner’s manual.

HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:

To obtain a replacement part or product, please visit

snowjoe.com/help or email us at [email protected] for

instructions. Please be sure to register your unit beforehand to

speed up this process. Failure to register your product purchase

will not diminish you warranty rights. Certain products may require

a serial number, typically found on the decal axed to the housing

or guard of your product. All products require a valid proof

of purchase.

EXCLUSIONS:

• Wearing parts like belts, augers, chains and tines are

not covered under this warranty. Wearing parts can be

purchased at snowjoe.com or by calling 1-866-SNOWJOE

(1-866-766-9563).

• Batteries are covered in full for 90-days from the date of

purchase.

Snow Joe

+ Sun Joe

may from time to time change the design

of its products. Nothing contained in this warranty shall be

construed as obligating Snow Joe

+ Sun Joe

to incorporate

such design changes into previously manufactured products, nor

shall such changes be construed as an admission that previous

designs were defective.

This warranty is intended to cover product defects only.

Snow Joe

, LLC is not liable for indirect, incidental or

consequential damages in connection with the use or misuse of

the Snow Joe

+ Sun Joe

products covered by this warranty.

This warranty does not cover any cost or expense incurred

by the purchaser in providing substitute equipment or service

during reasonable periods of malfunction or non-use of this

product while waiting for a replacement part or unit under this

warranty. Some states do not allow exclusions of incidental or

consequential damages so the above exclusions may not apply

in all states. This warranty may give you specic legal rights in

your state.

HOW TO REACH US:

We’re here to help Monday through Friday from 9AM to 6PM EST.

You can reach us at 1-866-SNOWJOE (1-866-766-9563), online

at snowjoe.com, via email at [email protected] or tweet us

@snowjoe.

EXPORTS:

Customers who have purchased Snow Joe

+ Sun Joe

products exported from the United States and Canada should

contact their Snow Joe

+ Sun Joe

distributor (dealer) to obtain

information applicable to your country, province or state. If for

any reason, you are not satised with the distributor’s service,

or if you have diculty obtaining warranty information, contact

your Snow Joe

+ Sun Joe

seller. If in the event your eorts are

unsatisfactory, please reach out to us directly.

ABOVE ALL ELSE, Snow Joe

+ Sun Joe

are dedicated to you, our customer. We strive to make your experience as pleasant

as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We

think it’s important that you know what you can expect from us. That’s why we created the Snow Joe

+ Sun Joe

promise.

OUR PROMISE: Snow Joe

+ Sun Joe

warrant new products for two years from the date of purchase. If your product does

not work, or there’s an issue with a specic part, we will x this by either sending you a free replacement part or by sending

you a new or comparable product at no charge. How cool is that! Before you know it, you’ll be back in action cutting,

sawing, mowing, washing and…?

snowjoe.com

Leave a Comment Cancel reply
