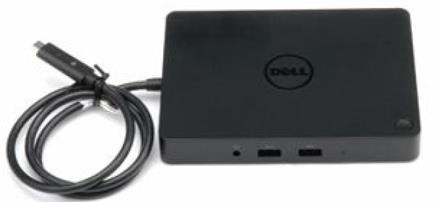

Dell Dock WD15 (USB Type-C)
Image English Only
| Dell Dock WD15 (USB Type-C) |
| Display Ports |
VGA, mDP, HDMI |
| Number Displays
Supported |
2 1 |
| Max Resolution |
3840 x 2160 @ 30 Hz, 2560 x 1600 @ 60Hz |
| USB Ports |
USB 2.0 – (2), USB 3.0 – (3) |
| Thunderbolt 3 Port |
None |
| Audio/Headphone |
3.5 mm Combo – (1), 3.5 mm Speaker Out (1) |
| Network |
RJ-45 Gigabit Ethernet |
| LED Indicators |
Power Adapter LED |
| Docking Cable Connector LED |
| RJ-45 LEDs |
| Dock Connector |
Proprietary Docking Connector to USB Type-C |
| AC Adapter |
130W/180W |
| Dimensions |
155 x 110 x 21 mm |
| 6.1 x 4.3 x 0.83 inches |
| Weight |
0.93 lbs |
| 420 g |
| System Requirements |
PC equipped with DisplayPort over USB-Type-C or Thunderbolt 3 |
| Operating Systems |
Windows 7/8/8.1/10 |
| Systems Management 2 |
Wireless vPro Supported by the Notebook, Tablet or Workstation |
| Docking Cable Type |
DisplayPort over USB Type-C (0.8m) |
| MAC Address 3 |
Pass Thru MAC Address (Dell Systems ONLY) |
| Warranty |
If purchased as a tied laptop accessory the dock shares the system
warranty |
| If purchased APOS, 1 yr warranty. Advanced Exchange (DAO/APJ), Next business day exchange EMEA |
| 1A 3rd display can be connected with the VGA port. The image will be in clone mode vs.
Extended Desktop.
2Dell Dock WD15 does not support wired vPro. If vPro is needed, then the system host Ethernet port may be used or WiFI vPro within the system.
3The dock has the capability to pass through the system MAC address to the network. |
System Compatibility Matrix for the WD15
| System Model |
| Alienware |
Alienware 13 R2 |
| Alienware 15 R2 |
| Alienware 17 R3 |
| Inspiron |
Inspiron 13 7000 Series (7368) |
| Inspiron 14 7000 Series (7460) |
| Inspiron 15 7000 Series (7560) |
| Inspiron 15 5000 Series (5570) |
| Inspiron 17 7000 Series (7773) |
| Inspiron 13 7000 Series (7373) |
| Inspiron 17 5000 Series (5770) |
| Inspiron 13 7000 Series (7370) |
| Inspiron 15 7000 Series (7570) |
| Inspiron 17 5000 Series (5775) |
| Inspiron AIO 5475 |
| Inspiron 15G 7588 |
| Venue Pro |
Venue 8 Pro 5855 |
| Venue 10 Pro 5056 |
| Latitude |
Latitude 12 7275 |
| Latitude 13 7370 |
| Latitude 15 5000 E5x70 w/H Processors |
| Latitude 11 5000 517x |
| Latitude 12 5280 |
| Latitude 14 5480 |
| Latitude 15 5580 |
| Latitude 12 7280 |
| Latitude 7380 |
| Latitude 7389 2-in-1 |
| Latitude 14 7480 |
| Latitude 5285 2-in-1 |
| Latitude 5289 2-in-1 |
| Latitude 7285 2-in-1 |
| Latitude 13 7390 |
| Latitude 7290 |
| Latitude 14 7490 |
| Latitude 12 5290 |
| Latitude 14 5490 |
| Latitude 15 5590 |
| Latitude 15 3590 |
| Latitude 14 3490 |
| Latitude 3390 2 In 1 |
| Latitude 14 5490 |
| Latitude 14 5491 |
| Latitude 15 5591 |
| Latitude 14 5495 |
| Precision |
Precision 15 5510 |
| Precision 15 7510 |
| Precision 15 7510 |
| Precision 15 3510 |
| Precision 15 5520 |
| Precision 15 3520 |
| Precision 15 7520 |
| Precision 15 7720 |
| Precision 15 5530 |
| Precision 15 3530 |
| XPS |
XPS 12 9250 |
| XPS 13 9350 |
| XPS 15 9550 |
| XPS 13 9360 |
| XPS 13 9365 2-in-1 |
| XPS 13 9370 |
| XPS 15 9560 |
| XPS 15 9570 |
| XPS 15 9575 2-in-1 |
| XPS Tower Special Edition (8910) |
While all systems with Thunderbolt 3 Controllers have a USB Type-C port, having a USB Type- C port does not ensure that you have a Thunderbolt 3 Controller.
Refer to this Dell knowledge-base article to ensure your system has the Thunderbolt 3 Controller required to use the Dell Thunderbolt Dock (TB16):
Systems with USB Type-C ports that lack a Thunderbolt 3 controller.
NOTE: A system requiring more than a 130 Watt AC Adapter must have its own AC power adapter attached to the system in addition to the dock AC Adapter.
NOTE: Ensure the latest BIOS revision available is installed before connecting to these docks.
AC Adapter requirements (Minimum Power Requirements) WD 15
| System Model with Dell Dock-WD15 |
Dock AC Adapter Wattage Required |
USB Type-C output Max |
| Latitude 14 7000 Series |
130 |
90 |
| Latitude 14 5000 Series |
130 |
90 |
| Latitude 13 7000 Series |
130 |
90 |
| Latitude 12 7000 Series 2-n-1 |
130 |
90 |
| Latitude 11 5000 Series 2-n-1 |
130 |
90 |
| Venue 10 Pro |
130 |
90 |
| Venue 8 Pro |
130 |
90 |
| XPS 12 9250 |
130 |
90 |
| XPS 13 9350 |
130 |
90 |
| XPS 13 9360 |
130 |
90 |
| XPS 13 9370 |
130 |
90 |
| Latitude 15 5000 Series |
130 |
90 |
| Precision 15 3000 Series |
180 |
130 |
| Precision 15 5000 Series |
180 |
130 |
| Precision 15 7000 Series (requires system power adapter for charging) |
180 |
130 |
| Precision 17 7000 Series (requires system power adapter for charging) |
180 |
130 |
| XPS 15 9550 |
180 |
130 |
| XPS 15 9560 |
180 |
130 |
| XPS 15 9570 |
180 |
130 |
| XPS 9575 2-in-1 |
130 |
90 |
NOTE: A system requiring more than 130 Watts or more that 3.34
[email protected] VDC must have its own power adapter attached (Precision 15 7000 Series and Precision 17 7000 Series)
Resolution Support Table
| Dell Dock WD15 |
| Resolution |
Number of Displays |
Refresh Rate |
| 1920 x 1080 |
2* |
60 Hz |
| 1920 x 1200 |
2* |
60 Hz |
| 2048 x 1536 |
1 |
60 Hz |
| 2560 x 1080 |
1 |
60 Hz |
| 2560 x 1440 |
1 |
60 Hz |
| 2560 x 1600 |
1 |
60 Hz |
| 3440 x 1440 |
1 |
30 Hz |
| 3840 x 2160 |
1 |
30 Hz |
NOTE: * A 3rd display can be connected with the VGA port. The image will be in clone mode vs. Extended Desktop.
Max VGA Resolution is 2048 x 1536 @ 60 Hz.
